EWAB workpiece carrier – small size

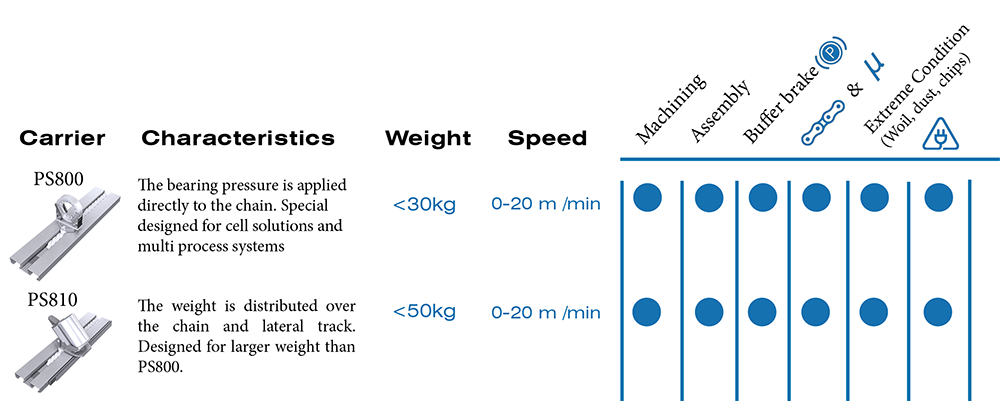

The PS800 and PS810 are very popular for manufacturing in the automotive industry and for parts to gearboxes and e-motors.
Therefore, when using an EWAB solution you will get exact position and orientation of the workpiece. This makes it easy for your robots or gantries to load the machines, or perform SPC control, laser marking and other operations on the workpiece.

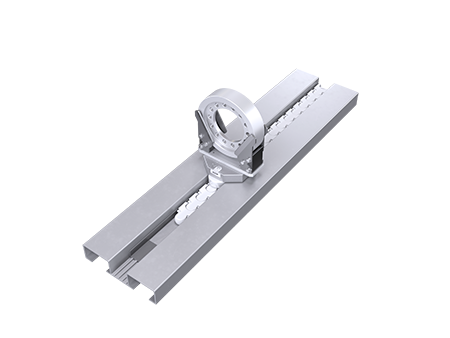

PS800
By using a motor-driven chain (EWAB sequra), the pallet is transported forward through a carefully calculated friction.
Furthermore, this pallet is special developed for the manufacturing industry. The workpiece position is centred to the chain and is made for high volumes and low Takt times.
Buffer brake function and weights up to 30 kg.

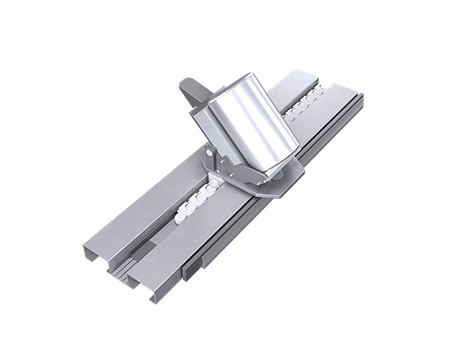

PS810
This pallet can carry higher weights up to 50kg, but also carry several workpieces.
It has additional support roller that runs on lateral steel rail.
By using a motor-driven chain (EWAB sequra), the pallet is transported forward through a carefully calculated friction.
However, the smart connected conveyor with it´s sensors, stops, circulation and buffer, make it a precise and fast transport with high throughput of parts. This popular size is mainly used for high volumes in manufacturing and can be added on all from multi process flow lines to single cell solutions.
All our solutions are robust and made for though environments with chips and grinding dust.
